Ultrasonic Cutting Generator
20 kHz and 30 kHz ultrasonic generators, transducers and cutters for food, plastic, rubber and non-woven — with RS485 Modbus so the generator can be installed in your automation machine.
A cutting generator built to sit inside your line
The ultrasonic cutting generator drives a transducer and a blade to slice food, rubber, non-woven and plastic with a clean edge and no deformation. A single generator can also run several transducers at once, and because RS485 Modbus is built in it drops straight into an automation machine and is commanded from the line controller.
Amplitude is adjustable from 0 to 100%, so a soft cheese and a dense composite can share the same generator with nothing more than a parameter change. We supply the transducer, the booster and blades in the sizes you cut, as one complete cutting system.
Five frequencies for cutting

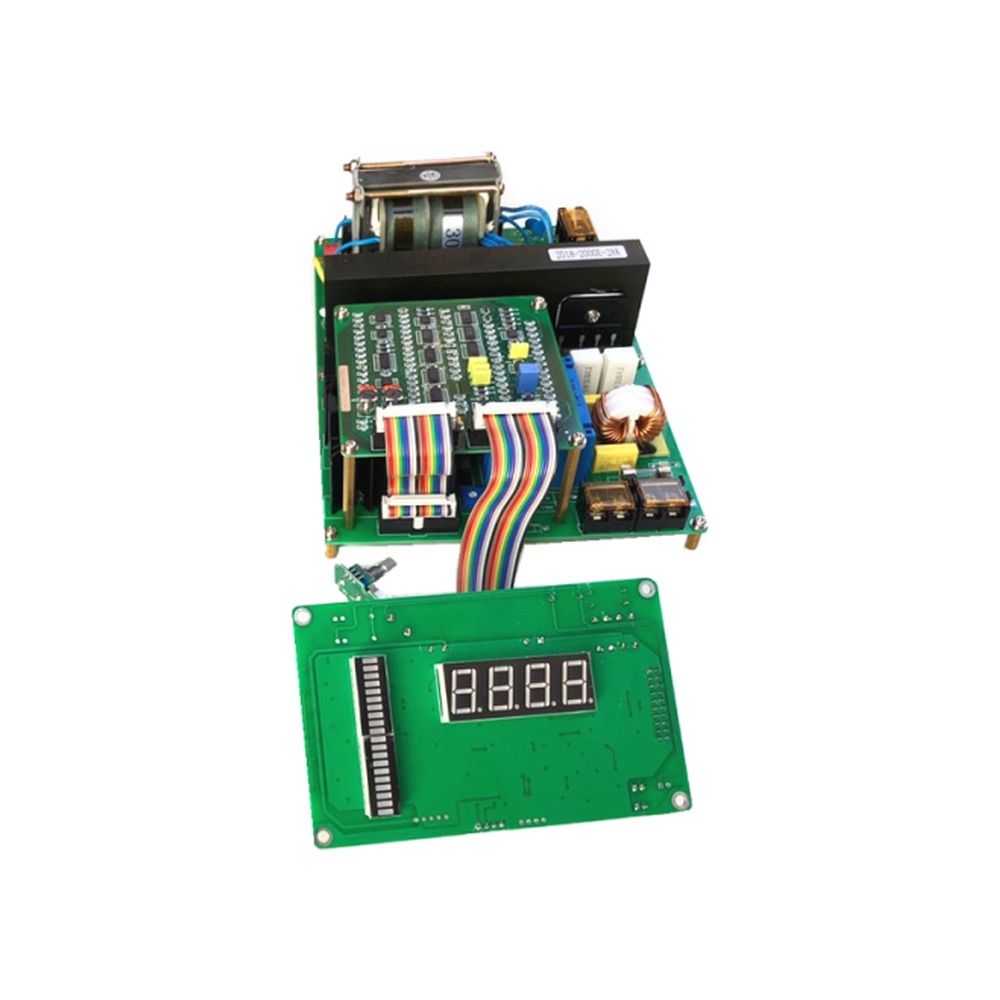

The cutting generator is chosen by material and blade, not by guesswork. Every version carries the same control board and wiring, so an automation builder can standardise across a machine.
Ultrasonic Cutting Generator Specifications
| Model | Frequency | Power | Blade family | Voltage |
|---|---|---|---|---|
| IT-2000C-15 | 15 kHz | 2600 W | Heavy blades | 220 VAC |
| IT-2000C-20 | 20 kHz | 2000 W | Standard blades | 220 VAC |
| IT-2000C-30 | 30 kHz | 800 / 1500 W | Fine blades | 220 VAC |
| IT-2000C-35 | 35 kHz | 800 / 1200 W | Hand blades | 220 VAC |
| IT-2000C-40 | 40 kHz | 500 / 800 W | Fine blades | 220 VAC |
Eight things that keep the cut clean
Parallel-resonance drive
Drives the converter and booster in parallel resonance, cutting transducer heating to protect it.
One-button start
Button start and a simple panel keep operation easy.
Imported control & driver chips
Imported control chip and driver make the generator work more reliably.
PID frequency and amplitude control
Frequency is based on PID control with amplitude control, giving frequency locking and constant amplitude.
Explosive power output
Compared with a conventional generator it needs only half the cylinder pressure for the same output.
Amplitude soft start
Soft start protects large blades and heavy moulds.
1% amplitude steps
Amplitude adjustable from 0 to 100% in 1% steps.
Multiple protections
Protection layers guard the equipment and the test piece.
One generator, ten industries
Ultrasonic cutting is chosen wherever a clean, sealed edge matters more than a knife or a laser. Because the blade vibrates rather than pushes, there is almost no dust, no drag and no burnt edge.

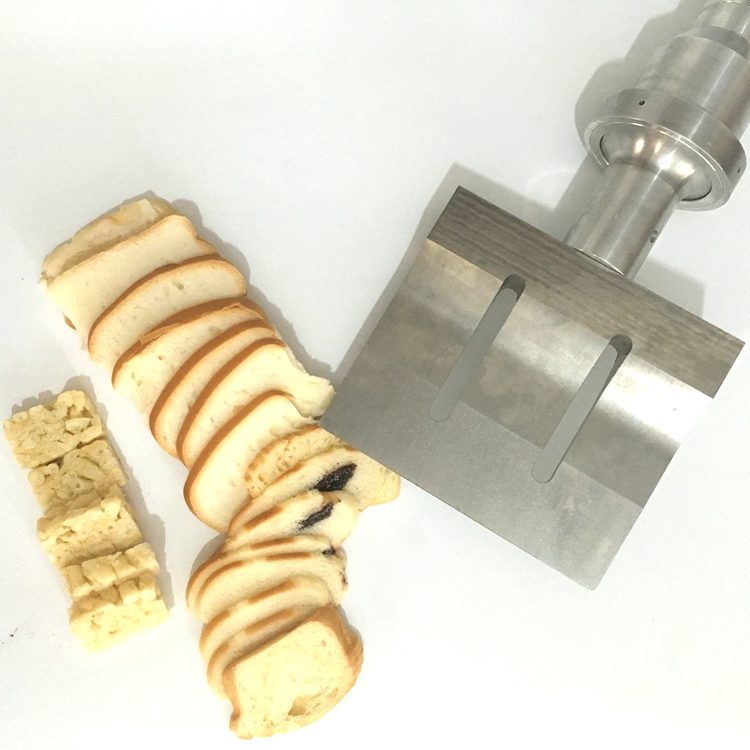

Food
Slices bakery, cheese and confectionery cleanly - including frozen portions - with no deformation.
See food cutting →
Textile
Cuts fabric, synthetic textiles and non-woven, sealing the edge to stop fraying.
See non-woven & textile →

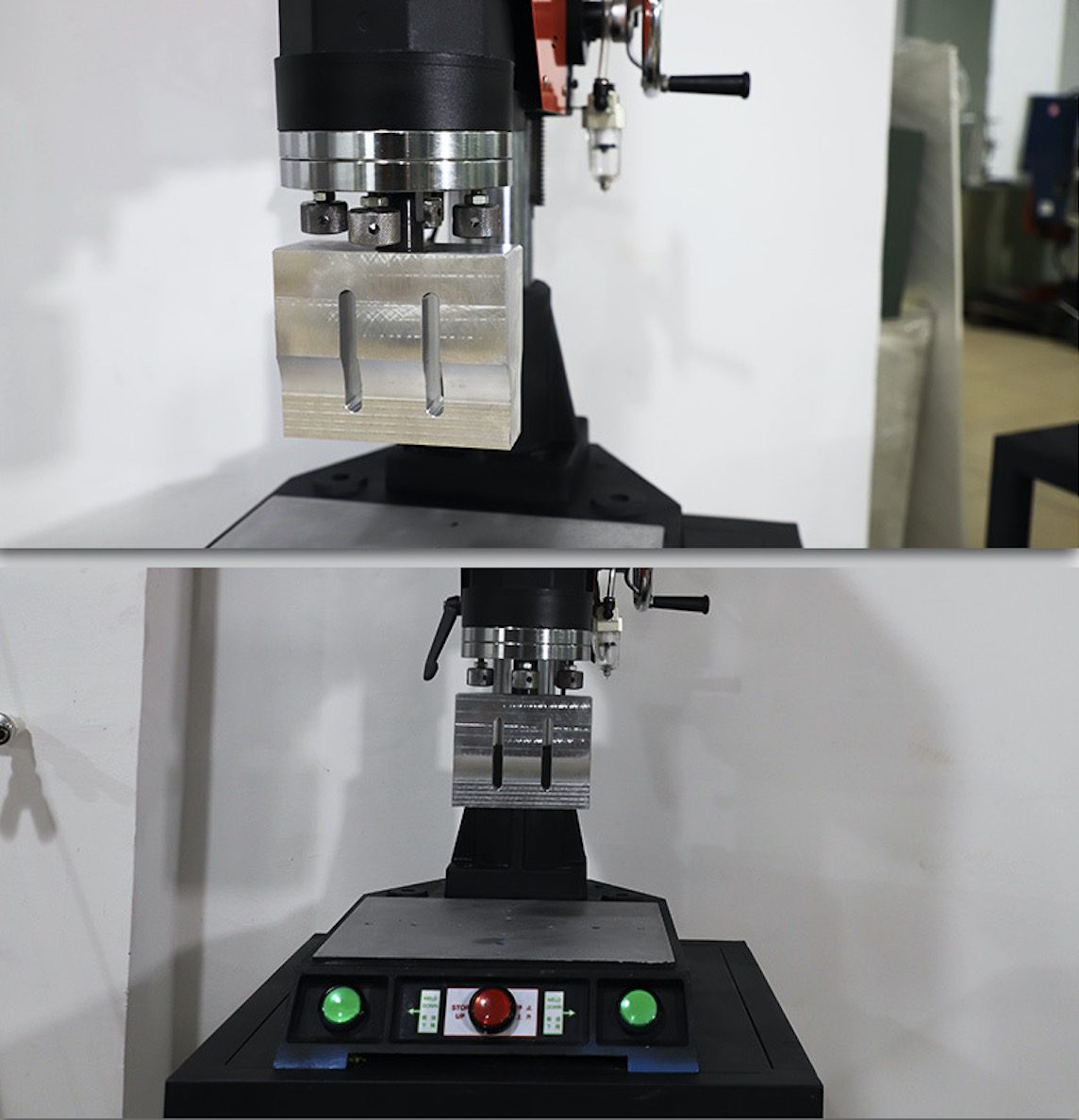

Rubber, plastic & automotive
Trims carpet, headliners, upholstery and moulded plastic without melting or tearing.
See plastic processing →Packaging
Cuts and seals plastic film for precise, strong seals on packaging lines.
Medical
Cuts in the production of catheters, wound dressings and other medical devices.
Aerospace
Precision cutting of composite materials used in aircraft construction.
Paper & printing
Cuts paper and corrugated cardboard with precision and speed.
Electronics
Precision cutting of electronic components and PCBs.
Renewable energy
Used in the production of solar panels and battery components.

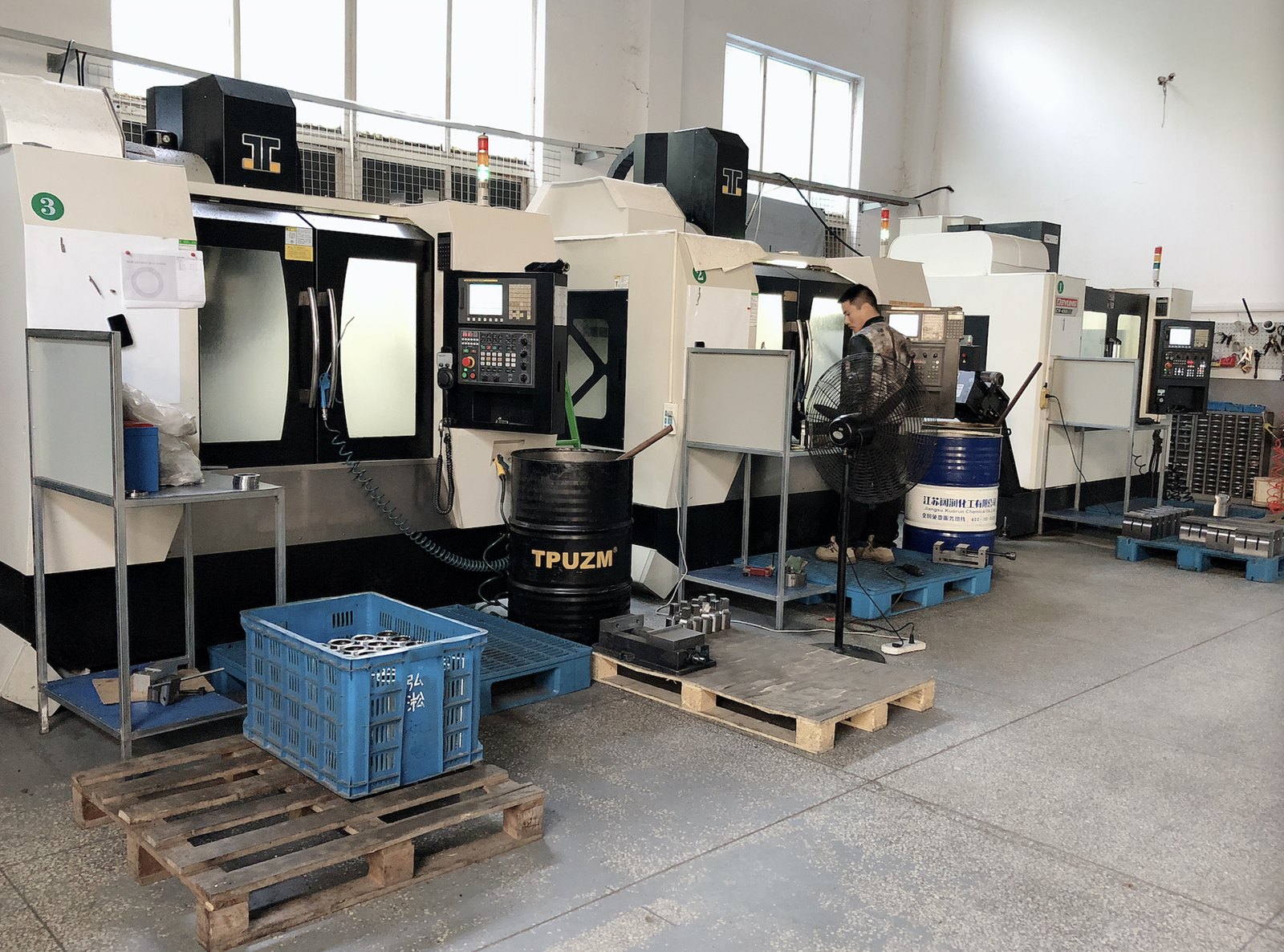

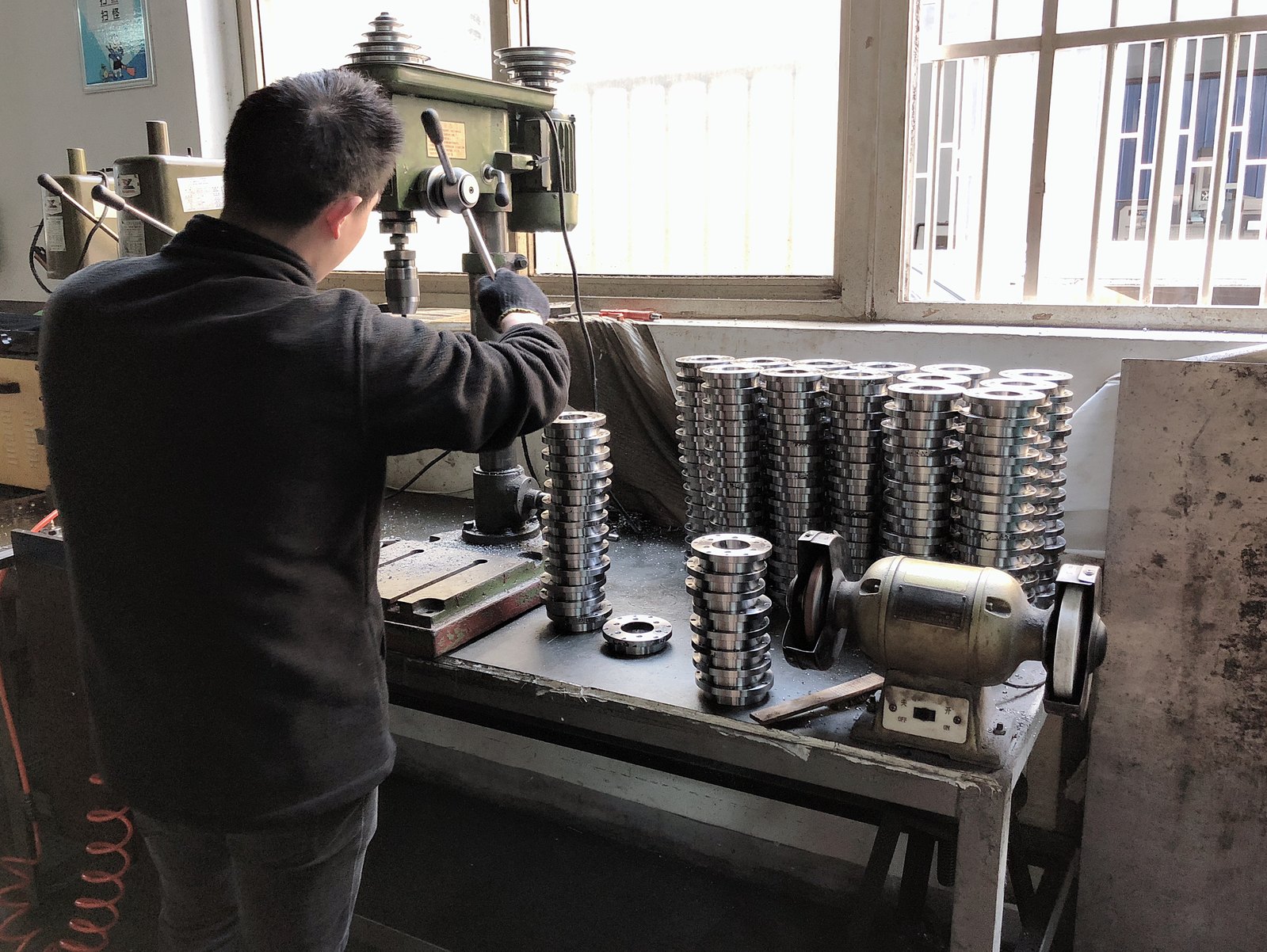

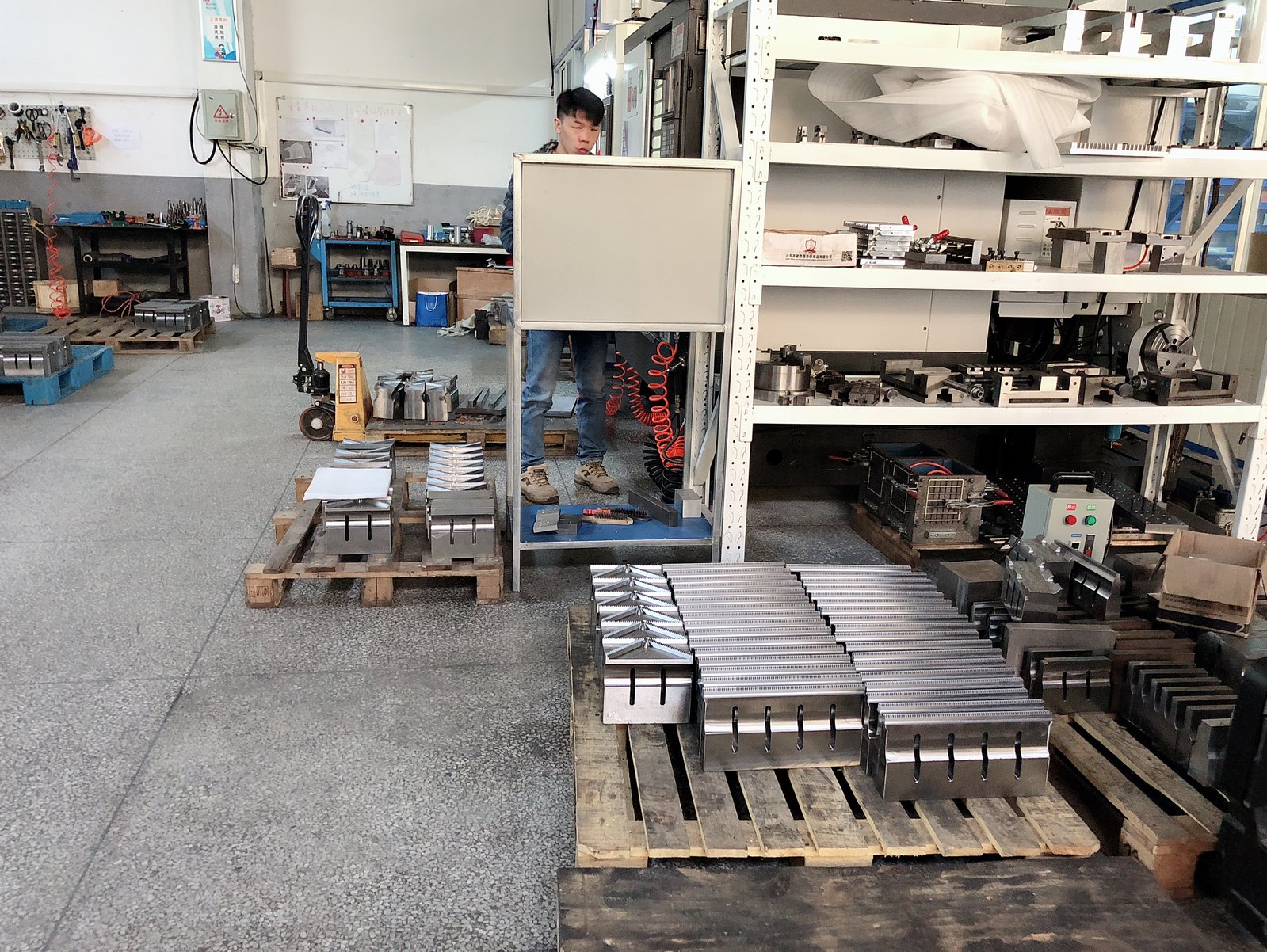

Sharp blades from our own machining shop

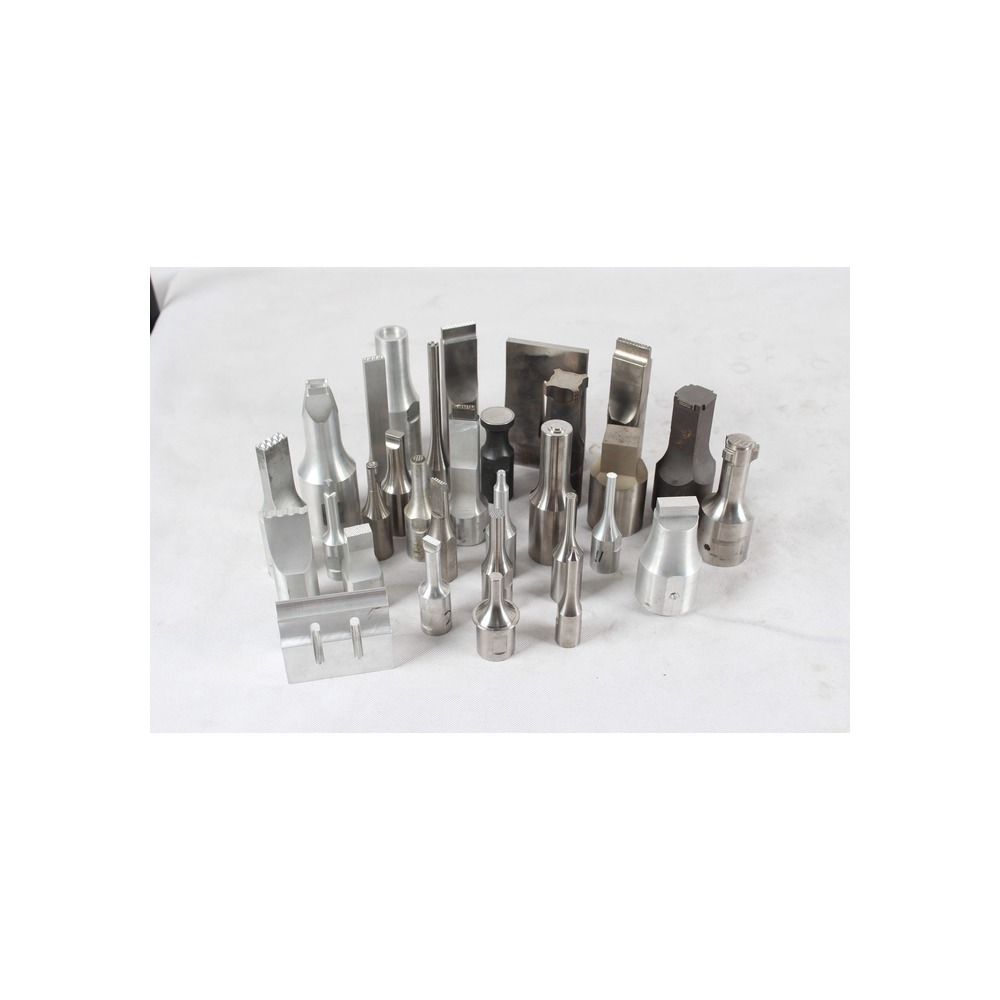

Complete the cutting system
Send us the material you need to cut
Tell us the material, the thickness and the blade you have in mind and we will confirm the frequency, the amplitude and the blades, then quote the complete cutting system.
