Ultrasonic Spraying Machine
Our ultrasonic spraying machines are used for the atomization of sewage, chemical liquid, oil mucus and coating or atomizing of liquids.
Atomize liquids into a fine, uniform mist
An ultrasonic spraying machine is a specialized piece of equipment that utilizes ultrasonic technology to atomize and disperse liquid substances into fine droplets or mist. This technology is commonly used in various industrial applications for precise and efficient coating, spraying, and atomizing of liquids.
Through different frequency and air passage design, different atomizing particle size and wide spray width can be produced to meet different spraying requirements such as different area, thickness and finish. In addition, the unique design of the shape structure can also be adapted to high temperature, narrow space and other special environments, such as spray coating, spray drying and spray pyrolysis.
How frequency shapes the spray
Lower frequencies move a larger volume of liquid with a coarser droplet; higher frequencies give a finer, slower mist. Pick the row that matches the coating thickness and the area you need to cover.
Frequency, flow rate and droplet size
| Frequency (kHz) | Maximum flow rate (ml/s) | Median droplet diameter (µm) |
|---|---|---|
| 25 | 3.3 | 55 |
| 35 | 6 | 49 |
| 48 | 2.9 | 25 |
| 60 | 1.2 | 25 |
| 120 | 0.35 | 15 |

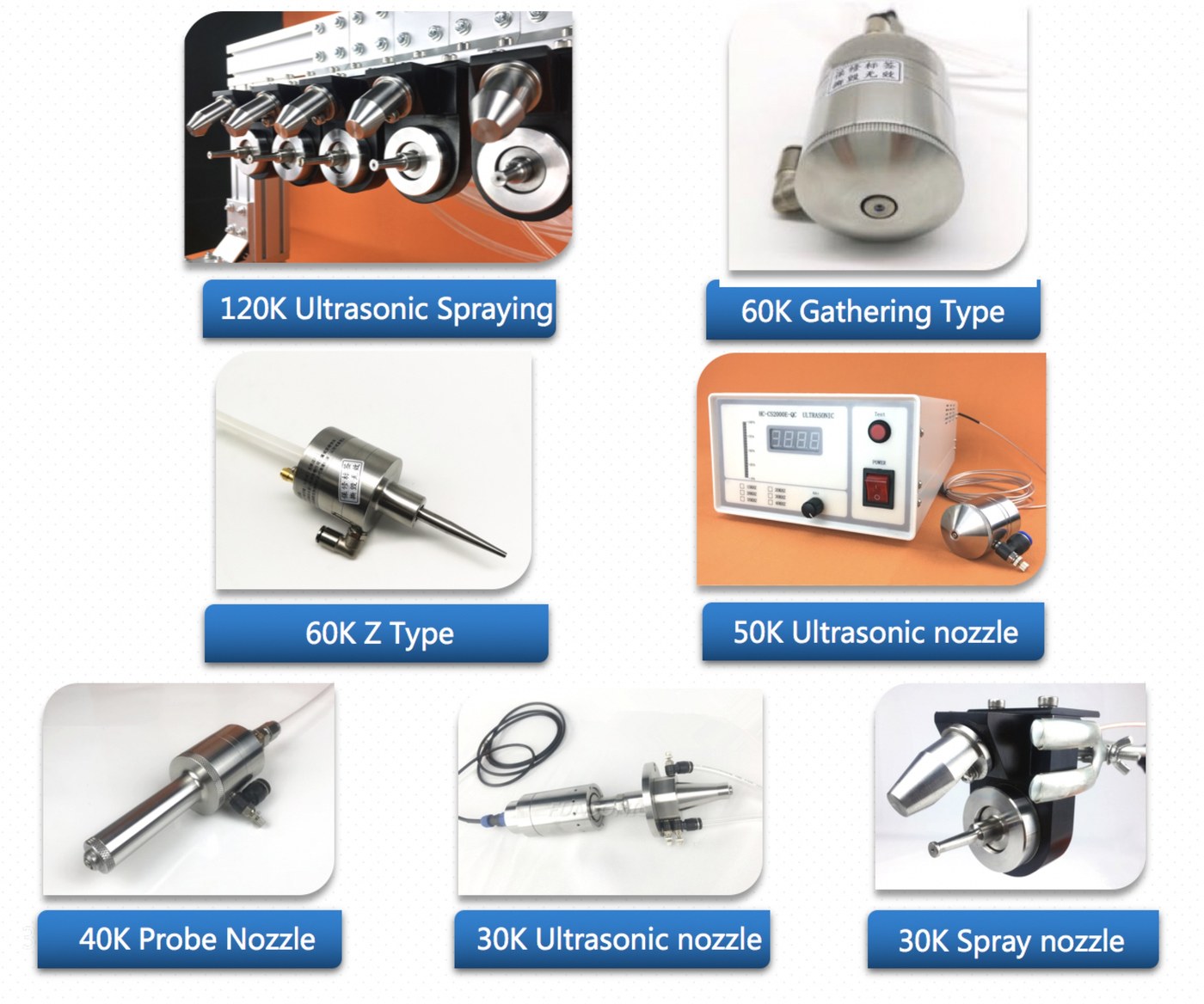

Five nozzle families for five spray patterns
The nozzle sets the spray pattern, the spray width and the distance to the workpiece. Five families cover almost every coating job, and they can be combined with the generator and transducer into one matched system.
- K — Wide spray for large area spraying.
- D — Scattering for large area spraying with a soft, even mist.
- Z — Converging for small area spraying.
- X — Long mouth for penetration spraying into cavities and tubes.
- L — Line spray for fine line spraying.
Nozzle family specifications
| Specification | K — Wide spray | D — Scattering | Z — Converging | X — Long mouth | L — Line spray |
|---|---|---|---|---|---|
| Atomized particle size range (µm) | 15–40 | 15–40 | 15–40 | 15–20 | 15–20 |
| Spray width (mm) | 40–120 | 40–80 | 2–20 | 1–3 | 0.5–2 |
| Spray flow rate (ml/min) | 0.1–20 | 0.1–20 | 0.01–10 | 0.001–10 | 0.01–1 |
| Spray height (mm) | 50–150 | 30–80 | 10–30 | 10–20 | 10–20 |
| Suitable liquid viscosity (cps) | <30 | <30 | <30 | <15 | <15 |
| Particle size of suspension (µm) | <10 | <10 | <10 | <8 | <8 |
| Diversion pressure (MPa) | <0.05 | <0.05 | <0.05 | <0.01 | <0.02 |
Ultrasonic atomization compared with two-fluid spraying
A softer spray that wastes less material

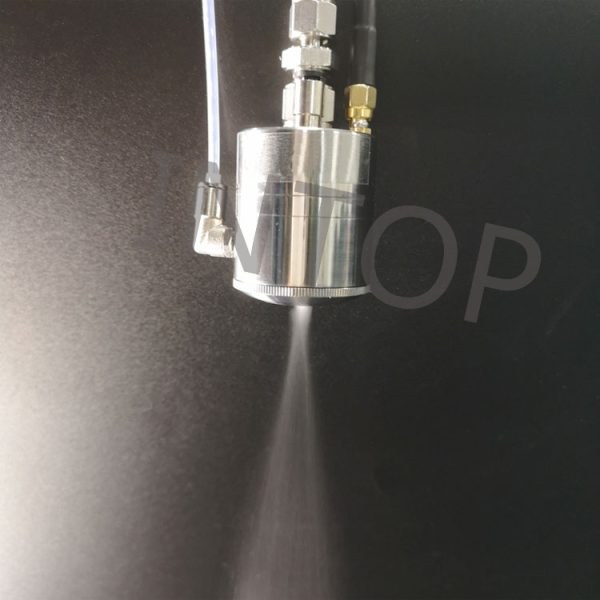

A two-fluid nozzle breaks the liquid up with the kinetic energy of gas and liquid, so the spray hits the part hard, splashes and wastes raw material. An ultrasonic nozzle atomizes the liquid with high-frequency vibration instead: the impact on the workpiece is very small, the droplets are uniform, and almost nothing is lost to overspray.
Because the droplet size follows the ultrasonic frequency rather than the nozzle diameter, the nozzle bore can stay wide. That keeps the orifice open, so the tip does not clog, and the flow rate stays controllable even at very low output.
Very low spray impact
No splashing and no waste of raw material, even on delicate substrates.
High particle uniformity
A consistent droplet size gives an even film thickness across the part.
Size set by frequency
Droplet size follows the ultrasonic frequency, independent of the nozzle diameter.
No clogging
The nozzle bore is wide and the tip keeps oscillating, so it does not block.
Precise flow control
Continuous spraying at very low flow rates, down to 0.001 ml/min.
High stability
Made of high-performance titanium alloy and stainless steel — no pressure, no noise.
Coatings and liquids sprayed by ultrasound
Because the droplet size is set by frequency rather than by air pressure, ultrasonic spraying suits thin, precise coatings and liquids that a conventional nozzle cannot handle — suspensions, high-viscosity liquids and high-temperature or narrow-space jobs.
Alternative energy & nanomaterials
Fuel cells, solar cells, CNT and nanowire coatings, spray pyrolysis and TCO, sensors, spray drying, electrolytic cells.
Glass & industrial
Float glass, functional and protective coatings, lenses, electrochromic layers, aluminium brazing flux, solder powder, advanced textiles, food manufacturing.
Medical devices
Stents, balloons, diagnostic devices, blood collection tubes and syringes, medical textiles, bandages and mesh patches.
Printed circuit boards
Wave soldering flux, selective soldering flux, OEM fluxing partners and solder recovery.
Semiconductors
MEMS and semiconductor coating, protective films for dicing, photoresist and polyimide deposition, EMI shielding, flip-chip flux.
Large-area coating

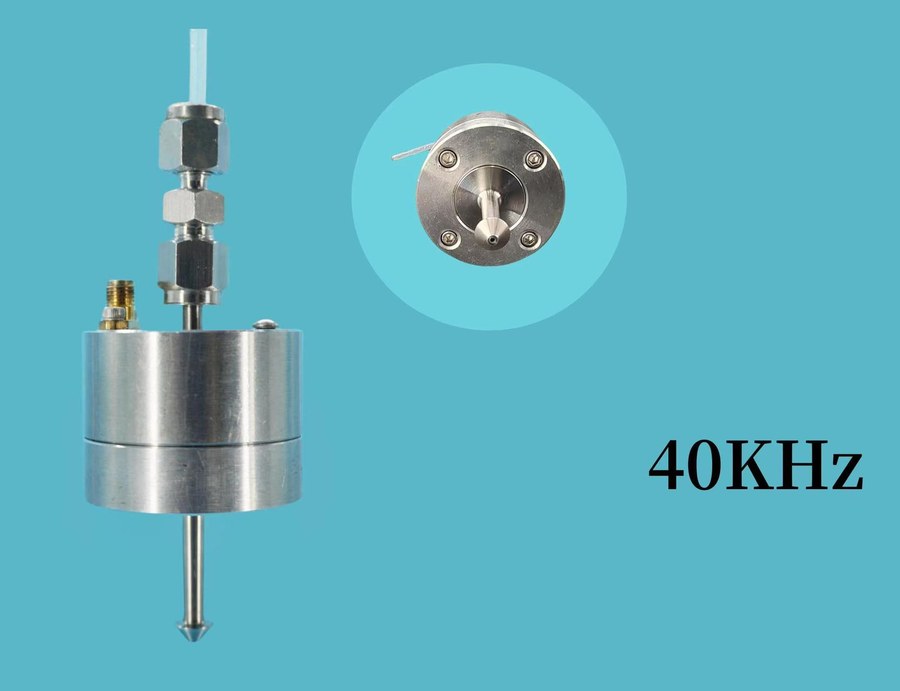

One pass covers a wide band with a uniform film, for glass, panels and webs.
See spray coating →
Small parts & fine patterns

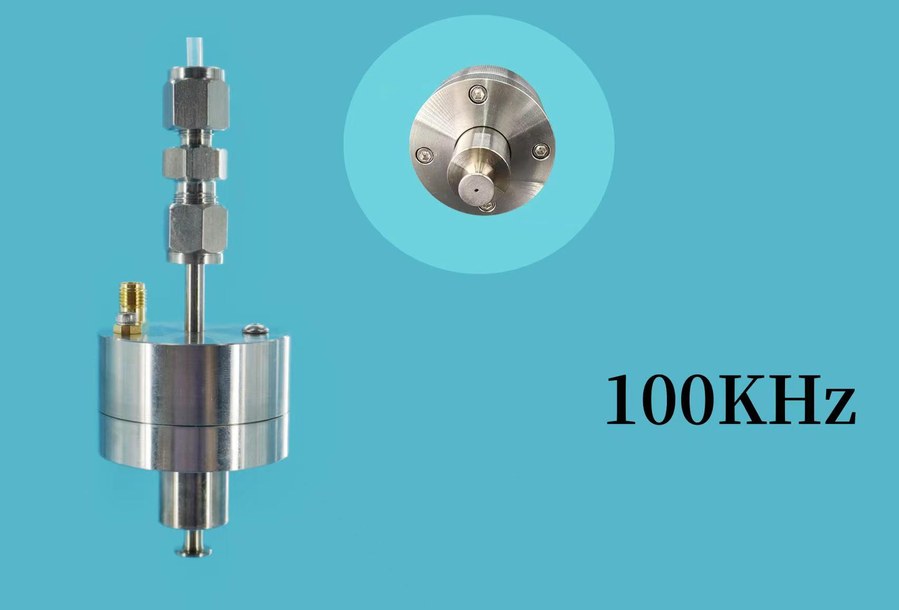

Converging and line nozzles place a narrow, exact stripe or dot on small parts.
See spray coating →
Ultra-fine functional layers

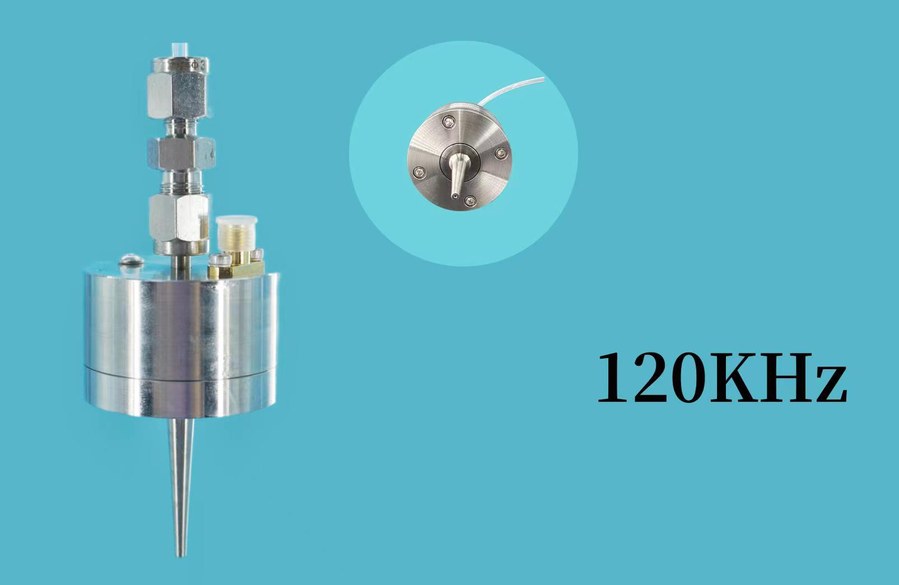

At 120 kHz the mist is fine enough for functional, photoresist and catalyst layers.
See spray coating →Complete the atomizing system

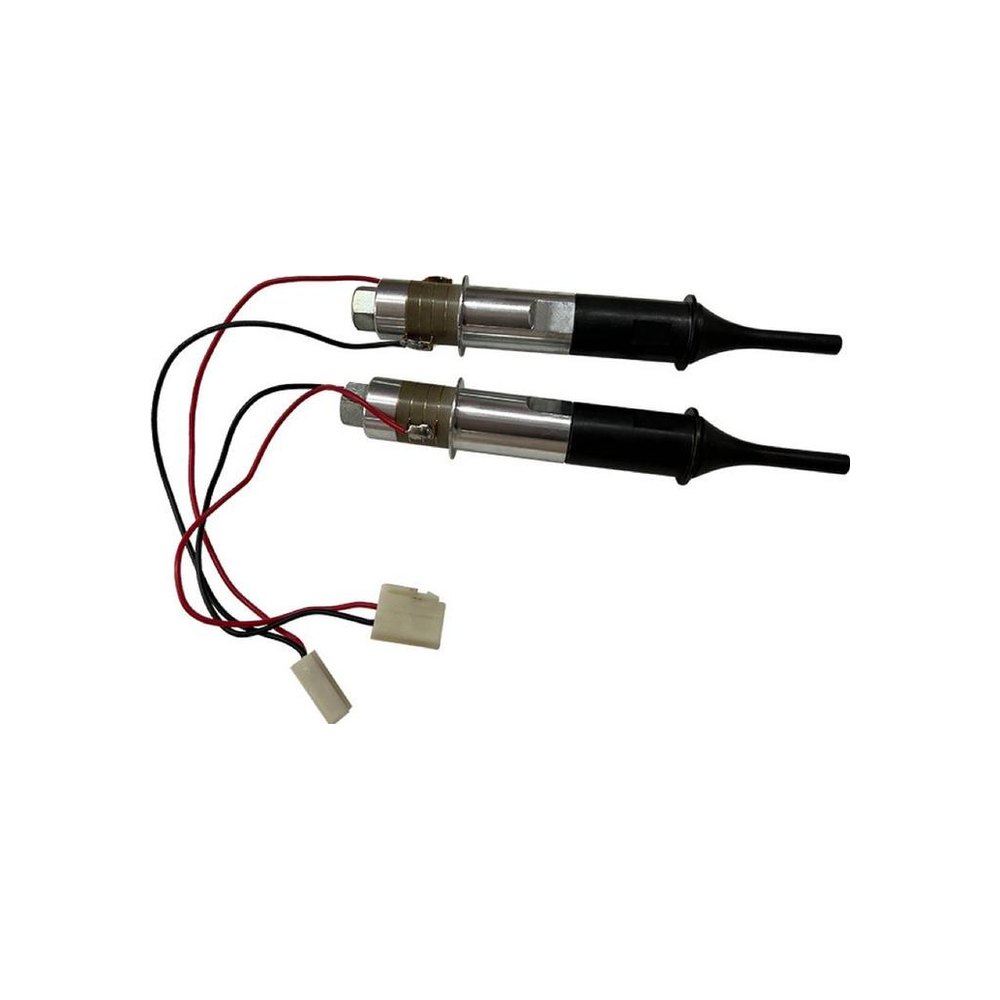

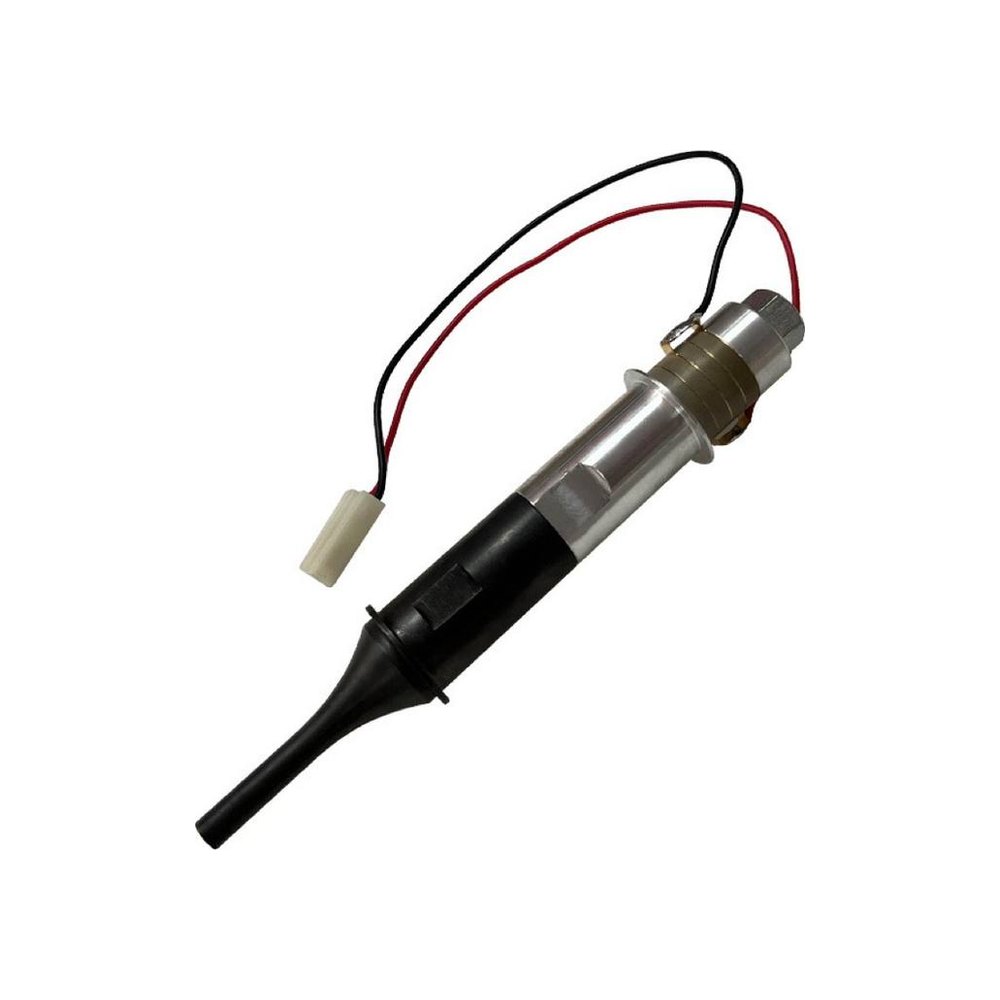

More views
Questions buyers ask before ordering
What liquids can be ultrasonically sprayed?
Most low- to medium-viscosity liquids and suspensions — tell us yours and we will test it.
How is droplet size controlled?
Droplet size is controlled by frequency and amplitude, independent of flow rate.
Why doesn't the nozzle clog?
The vibrating nozzle keeps droplets atomised and resists the clogging that plagues pressure nozzles.
Can you keep solids suspended in the feed?
Yes — we can agitate or circulate the feed to keep solids evenly suspended.
Send us your liquid for a free spray test
Tell us the coating, the substrate and the film thickness you need and we will run a free atomization test, then recommend the frequency and the nozzle family.
Request a Quotation
