Product Introduction

Production-scale power, bench-style control

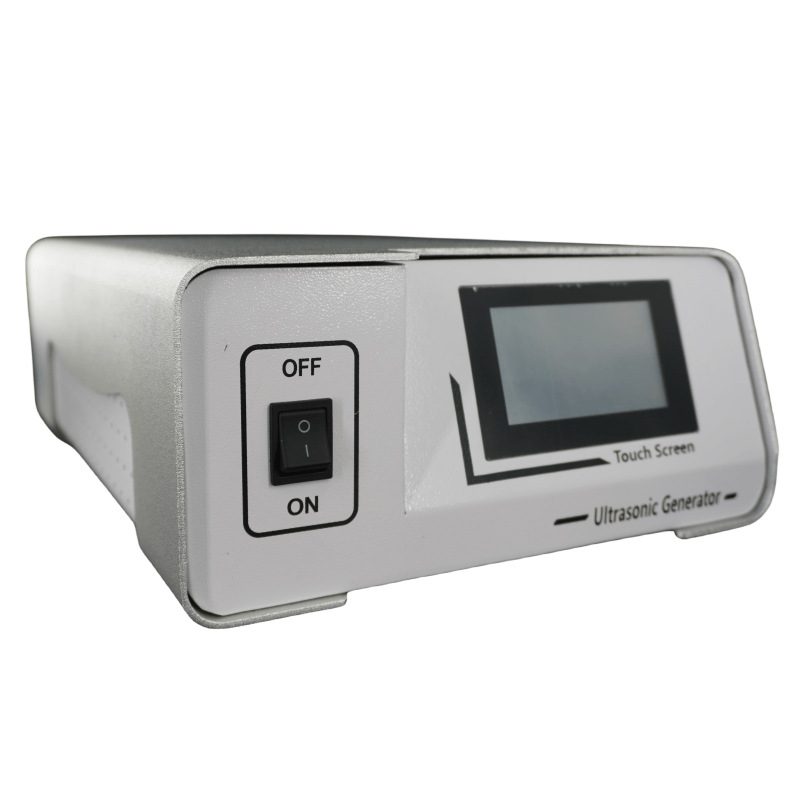

The WT320 pushes sonochemistry into production territory: 1000 / 2000 / 3200 W power ratings on one platform, with touch screen control and 485 communication for integration into process lines.

Three matching capacitance windows (10 / 15 / 20 nF) let one WT320 drive different reactor heads — probe stacks for batch work, tube reactors for continuous flow — without changing the control logic.

1000 / 2000 / 3200 WTouch screen + 48510 / 15 / 20 nF windowsContinuous dutySoftware + hardware protection

Power Classes

One platform, three ratings

1000 W

Pilot batches

2000 W

Semi-works lines

3200 W

Production duty

10/15/20 nF

Matching windows

Process Applications

What runs on a WT320

Application	Typical duty	Reactor pairing
Graphene / nanomaterial dispersion	Batch or recirculation	Probe stack or tube reactor
Water treatment & purification	Continuous flow	Inline tube reactors
Pipeline descaling	Continuous, in-plant	Clamp-on or inline sections
Organic matter degradation	Continuous flow	Multi-tube trains
Industrial homogenisation	Recirculation loop	Flow cell with probe

Technical Specification

Technical specification

A WT320 is bought as a system — generator plus the reactor head the process needs.

System building

1

Define the process — media, flow, goal.

2

We pair the reactor head and power rating.

3

Commissioned with settings for your line.

485 communication lets a PLC start, stop and read status across multiple WT320 units.

Frequency	20 kHz
Power ratings	1000 W / 2000 W / 3200 W
Matching capacitance	10 / 15 / 20 nF ±5%
Type	Touch screen control, 485 communication
Dimensions	32.7 × 22.3 × 11.3 cm
Weight	4.25 kg
Input voltage	AC 220 V, 50 Hz
Protection	Software + hardware

Suitable Applications

In production environments

Continuous Processing

Inline reactors on production and recirculation loops.

Reactor Trains

Parallel tubes for higher throughput on one line.

Batch Dispersion

High-amplitude batch work between flow runs.

Recommended Matching Components

Complete the system

2000L Generator

Economy 20 kHz 1000 W lab / pilot generator.

View details →

Processing Systems

Batch, flow and multi-probe reactor configurations.

View details →

Transducers & Converters

Piezo stacks for liquid processing probes and reactors.

View details →

Spray Systems

Ultrasonic atomising nozzles for coating lines.

View details →

Customization & Testing

Size the WT320 to your flow

Send the process definition — media, flow rate, goal — and we return the power class and reactor pairing with a quotation.

• Process goal and media properties
• Flow rate (L/h) or batch volume
• Continuous duty hours per day
• Vessel / pipeline interface
• Control integration (485 / PLC)
• Explosion-proof or washdown needs

Send Us Your Requirement Free Process Test

1

You define the process.

2

We size the power class and reactor.

3

You receive the system proposal and quotation.

FAQ

Which power rating for us?

Flow rate and solids decide it — we calculate energy density per litre and confirm.

Can one WT320 run two reactors?

No — one generator per head; multi-unit trains are common and bus-controlled.

Descaling without stopping the line?

Clamp-on and inline options exist — layout decides.

Integration with our DCS?

485 protocol with start/stop and status readback — mapping provided.

2000L GeneratorEntry platformProcessing SystemsReactor familyBench HomogenizerLab-scale package

Send the Process Definition

Power class, reactor pairing and integration plan — engineered against your flow, not guessed.

Contact an Engineer
