Ultrasonic Metal Welding Machine
A servo-driven ultrasonic metal welding machine built for multi-layer tab, busbar and foil joining — 15–40 kHz, 800–12000 W and up to 8000 N of weld force, with the energy and force curve of every weld logged on screen.
Solid-state joining for tabs, busbars and foil stacks
This is the heavier welding head in our metal welding range: where the handheld spot welder handles single terminals and wire ends, this machine is built for multi-layer tab stacks, busbars and foil packs. Fixture, anvil and horn are machined to your part geometry, then frequency-tuned and trial-tested before the machine ships.
Ultrasonic welding joins copper and aluminium layers below melting point. The vibration scrubs the contact surfaces clean and bonds them without filler, flux or shielding gas, so contact resistance stays low and the metallurgy around the joint is not annealed. Power, frequency and tooling are configured around your stack — layer count, foil thickness and joint footprint.
Six things buyers check on a metal welder
Battery-line ready
Engineered for tab, busbar and foil-stack joining in lithium-ion cell and pack lines.
Wide power range
800 W to 12000 W — matched to layer count and material thickness.
Servo weld control
Closed-loop servo force and depth control with on-screen weld-energy curves for every cycle.
High weld force
Up to 8000 N output pressure for dense multi-layer stacks.
One-screen monitoring
Industrial display shows force, displacement and energy traces — quality traces saved per weld.
Line integration
Standard I/O and fieldbus interfaces connect to PLCs and automation cells.
Multi-layer joining without melting the foil

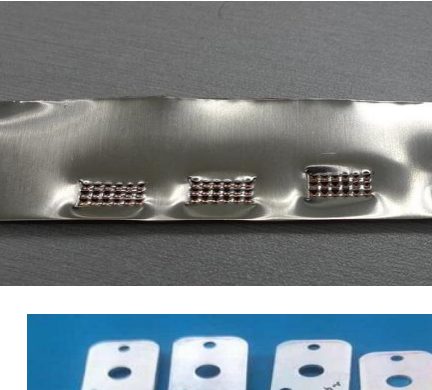

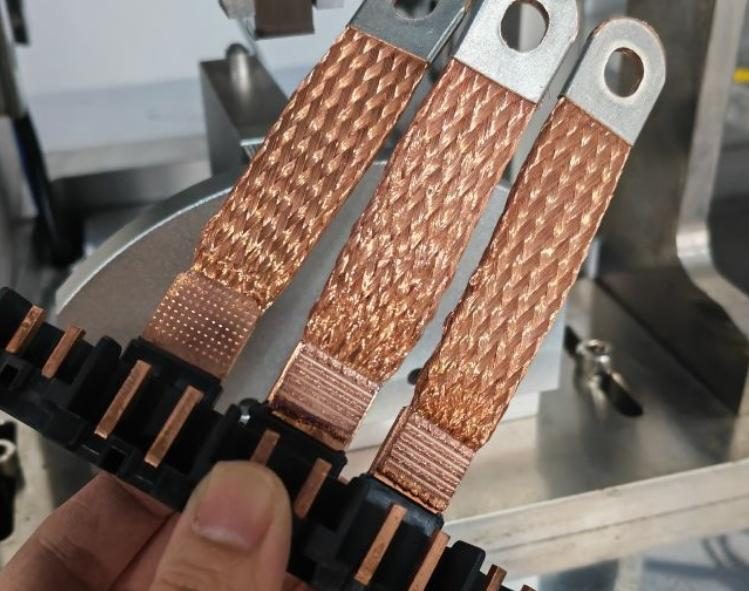

Battery tabs and busbars demand joints that stay cool, conduct well and survive vibration for years. Because the layers are bonded below melting point, the joint keeps its conductivity and there is no heat-affected zone to weaken the surrounding material.
The machine can run manual, semi-automatic or fully automatic stations. The servo drive controls force and depth in closed loop while the generator tracks resonance automatically, so cycle-to-cycle results stay repeatable through a full shift — and every weld is logged, so process drift is caught early.
Servo Ultrasonic Metal Welding Machine — specification
| Item | Value |
|---|---|
| Product name | Servo Ultrasonic Metal Welding Machine |
| Frequency | 15 kHz – 40 kHz optional |
| Power | 800 W – 12000 W optional |
| Voltage | 220 V / 380 V |
| Working stroke | 30 mm / 50 mm |
| Drive mode | Servo / pneumatic |
| Maximum output pressure | 8000 N |
| Air pressure | 0.2–0.7 MPa |
| Monitoring | Weld energy & force curve display, per-cycle quality log |
| Warranty | One year warranty with lifetime support |
Three joints this machine is bought for
Wire Harness & Terminals

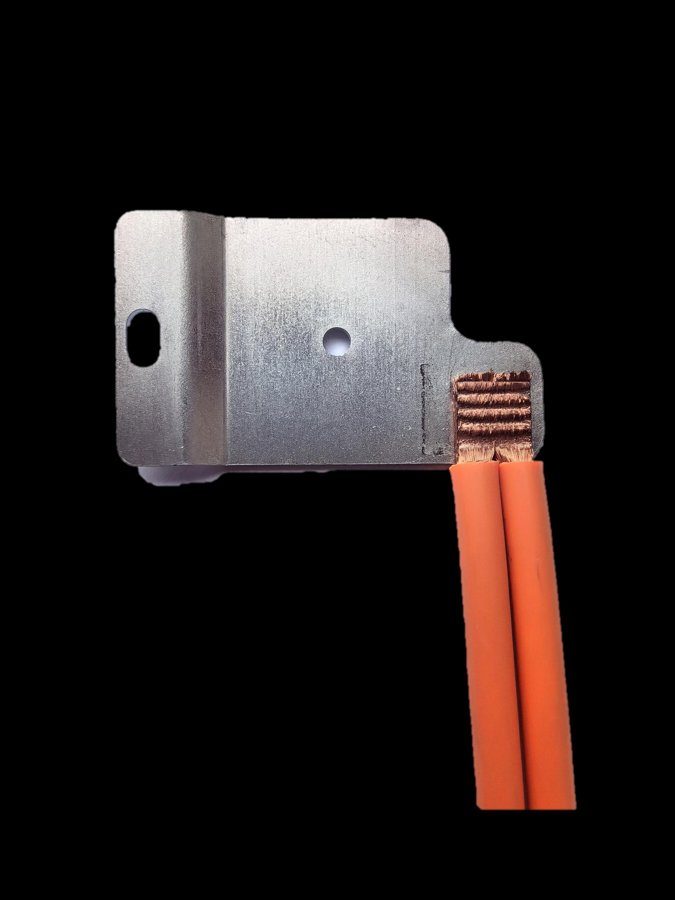

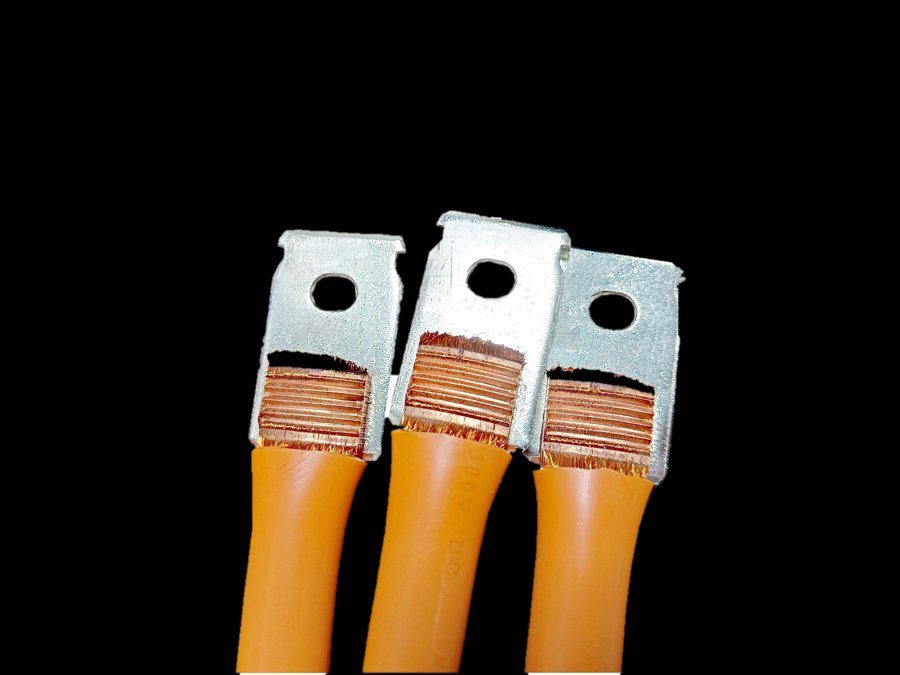

Spot welding of copper terminals, wire ends and braided connectors in automotive and appliance harnesses.
Battery Tab Joints
Joining foil and tab material in cell assembly and repair work — from single tabs to dense multi-layer stacks.
Electronics & Contacts
Welding contact parts, busbar stubs and shield joints where solder heat is a risk to nearby components.
Assembled and tuned in our own workshop
Questions buyers ask before ordering
Can you weld my sample first?
Yes. Send us your tabs, foil stack or terminals and we run the weld in our application lab, then return the tested parameter set with photos and, if you need it, pull-test results.
How do I match the transducer to the generator?
Send the transducer model or its capacitance value. We check frequency, capacitance range and horn weight against the generator platform and confirm the match before you order.
Can the fixture and tooling be adapted to our part geometry?
Yes — welding horn, anvil and fixture are machined in-house from your 3D file, then frequency-tuned and trial-tested on your parts before shipping.
What is the lead time?
Standard configurations ship fastest; custom power, frequency or tooling adds engineering time. Tell us your part and target output and we quote lead time with the configuration.
Other metal welding systems
Send us your metal parts for a free weld test
Share the material, layer count, thickness and joint footprint. We weld your samples in our application lab and return the recommended machine configuration, tooling drawing and parameter set — usually within 2-3 working days.
Request a Quotation
